Hydraulics - Cylinders double acting
| Rod Diameter | Bore Diameter | Stroke | Price | Ref | |

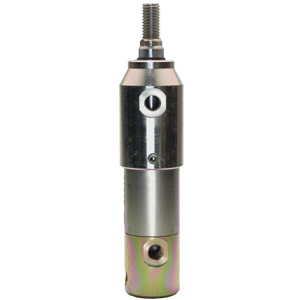

 Hydraulic Double acting micro cylinder | |||||
| 12mm | 20mm | 50mm | £129.00 | 71220.50 | |
| 12mm | 20mm | 80mm | £139.00 | 71220.80 | |
| 16mm | 25mm | 150mm | £168.00 | 71625.150 | |
| 16mm | 25mm | 200mm | £195.00 | 71625.200 | |
| Rod Diameter | Bore Diameter | Stroke | Price | Ref | |

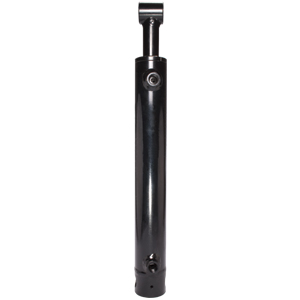

 Hydraulic double acting cylinder | |||||
| 20mm | 32mm | 50mm | £115.00 | 700/05 | |
| 20mm | 32mm | 100mm | £138.00 | 700/10 | |
| 20mm | 32mm | 150mm | £166.00 | 100/5 | |
| 20mm | 32mm | 200mm | £166.00 | 700/20 | |
| 20mm | 32mm | 300mm | £199.00 | 700/30 | |
| 20mm | 32mm | 400mm | £199.00 | 700/40 | |
| 20mm | 32mm | 500mm | £199.00 | 700/50 | |
| 20mm | 32mm | 600mm | £199.00 | 700/60 |
| Rod Diameter | Bore Diameter | Stroke | Price | Ref | |
Hydraulic double acting cylinder | |||||
| 25mm | 40mm | 100mm | £119.60 | 701/1 | |
| 25mm | 40mm | 200mm | £153.50 | 701/2 | |
| 25mm | 40mm | 300mm | £155.00 | 701/3 | |
| 25mm | 40mm | 400mm | £159.00 | 701/4 | |
| 25mm | 40mm | 500mm | £169.00 | 701/5 | |
| 25mm | 40mm | 600mm | £170.00 | 701/6 | |
| 25mm | 40mm | 700mm | £179.00 | 701/7 | |
| 25mm | 40mm | 800mm | £189.00 | 701/8 | |
| 25mm | 40mm | 900mm | £192.00 | 701/9 | |
| 25mm | 40mm | 1000mm | £195.00 | 701/10 |
| Rod Diameter | Bore Diameter | Stroke | Price | Ref | |
Hydraulic double acting cylinder | |||||
| 30mm | 50mm | 100mm | £89.00 | 702/1 | |
| 30mm | 50mm | 200mm | £95.00 | 702/2 | |
| 30mm | 50mm | 300mm | £129.00 | 702/3 | |
| 30mm | 50mm | 400mm | £129.00 | 702/4 | |
| 30mm | 50mm | 500mm | £129.00 | 702/5 | |
| 30mm | 50mm | 600mm | £129.00 | 702/6 | |
| 30mm | 50mm | 700mm | £129.00 | 702/7 | |
| 30mm | 50mm | 800mm | £129.00 | 702/8 | |
| 30mm | 50mm | 900mm | £132.00 | 702/9 | |
| 30mm | 50mm | 1000mm | £142.00 | 702/10 |
| Rod Diameter | Bore Diameter | Stroke | Price | Ref | |
Hydraulic double acting cylinder | |||||
| 30mm | 60mm | 100mm | £135.00 | 703/1 | |
| 30mm | 60mm | 200mm | £140.00 | 703/2 | |
| 30mm | 60mm | 300mm | £148.00 | 703/3 | |
| 30mm | 60mm | 400mm | £150.00 | 703/4 | |
| 30mm | 60mm | 500mm | £155.00 | 703/5 | |
| 30mm | 60mm | 600mm | £159.00 | 703/6 | |
| 30mm | 60mm | 700mm | £169.50 | 703/7 | |
| 30mm | 60mm | 800mm | £169.00 | 703/8 | |
| 30mm | 60mm | 900mm | £179.00 | 703/9 | |
| 30mm | 60mm | 1000mm | £199.00 | 703/10 |
| Rod Diameter | Bore Diameter | Stroke | Price | Ref | |
Hydraulic double acting cylinder- Plain Ends | |||||
| 35mm | 60mm | 450mm | £72.00 | 73560-450-ICD | |
| 40mm | 60mm | 450mm | £95.00 | 74060-450-ICD | |
| Rod Diameter | Bore Diameter | Stroke | Price | Ref | |
Hydraulic double acting cylinder | |||||
| 40mm | 70mm | 100mm | £159.00 | 704/1 | |
| 40mm | 70mm | 200mm | £169.00 | 704/2 | |
| 40mm | 70mm | 300mm | £175.00 | 704/3 | |
| 40mm | 70mm | 400mm | £179.00 | 704/4 | |
| 40mm | 70mm | 500mm | £182.00 | 704/5 | |
| 40mm | 70mm | 600mm | £185.00 | 704/6 | |
| 40mm | 70mm | 700mm | £203.00 | 704/7 | |
| 40mm | 70mm | 800mm | £250.00 | 704/8 | |
| 40mm | 70mm | 900mm | £250.00 | 704/9 | |
| 40mm | 70mm | 1000mm | £250.00 | 704/10 |
| Rod Diameter | Bore Diameter | Stroke | Price | Ref | |
Hydraulic double acting cylinder | |||||
| 40mm | 80mm | 100mm | £129.00 | 705/1 | |
| 40mm | 80mm | 200mm | £130.00 | 705/2 | |
| 40mm | 80mm | 300mm | £131.00 | 705/3 | |
| 40mm | 80mm | 400mm | £139.00 | 705/4 | |
| 40mm | 80mm | 500mm | £146.00 | 705/5 | |
| 40mm | 80mm | 600mm | £154.00 | 705/6 | |
| 40mm | 80mm | 700mm | £161.00 | 705/7 | |
| 40mm | 80mm | 800mm | £169.00 | 705/8 | |
| 40mm | 80mm | 900mm | 176.00 | 705/9 | |
| 40mm | 80mm | 1000mm | £184.00 | 705/10 |
| Rod Diameter | Bore Diameter | Stroke | Price | Ref | |
Hydraulic double acting cylinder | |||||
| 50mm | 100mm | 300mm | £235.00 | 706/3 | |
| 50mm | 100mm | 400mm | £236.00 | 706/4 | |
| 50mm | 100mm | 500mm | £248.00 | 706/5 | |
| 50mm | 100mm | 600mm | £380.00 | 706/6 | |
| 50mm | 100mm | 700mm | £390.00 | 706/7 | |
| 50mm | 100mm | 900mm | £420.00 | 706/9 |
| Rod Diameter | Bore Diameter | Stroke | Price | Ref | |
Hydraulic double acting cylinder | |||||
| 70mm | 120mm | 500mm | £630.00 | 707/05 | |
| 70mm | 120mm | 1000mm | £795.00 | 707/10 |
