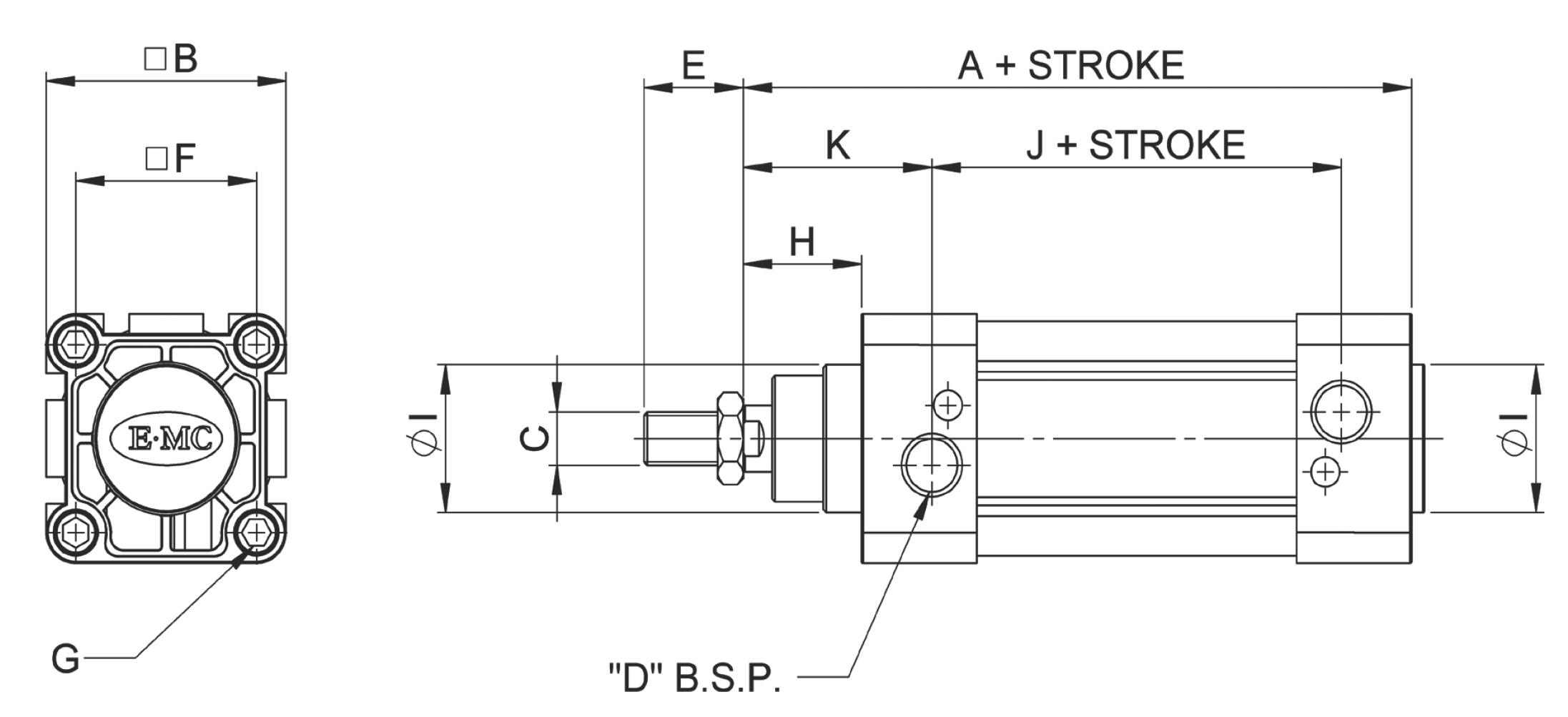

EMC VDMA Pneumatic Cylinders - 32mm Bore Cylinders

ALL OUR FXBC & FVBC CYLINDERS HAVE STAINLESS STEEL SS304 RODS

Part number	Bore	Rod	Stroke	A	B	C	D	E	F	G	H	I	J	K	Price
FXBC32X25	32	12	25	120	45	M10x1.25	1/8	22	32.5	M6	26	30	22	32.5	sold
FXBC32X50	32	12	50	120	45	M10x1.25	1/8	22	32.5	M6	26	30	22	32.5	sold
FXBC32X80	32	12	80	120	45	M10x1.25	1/8	22	32.5	M6	26	30	22	32.5	sold

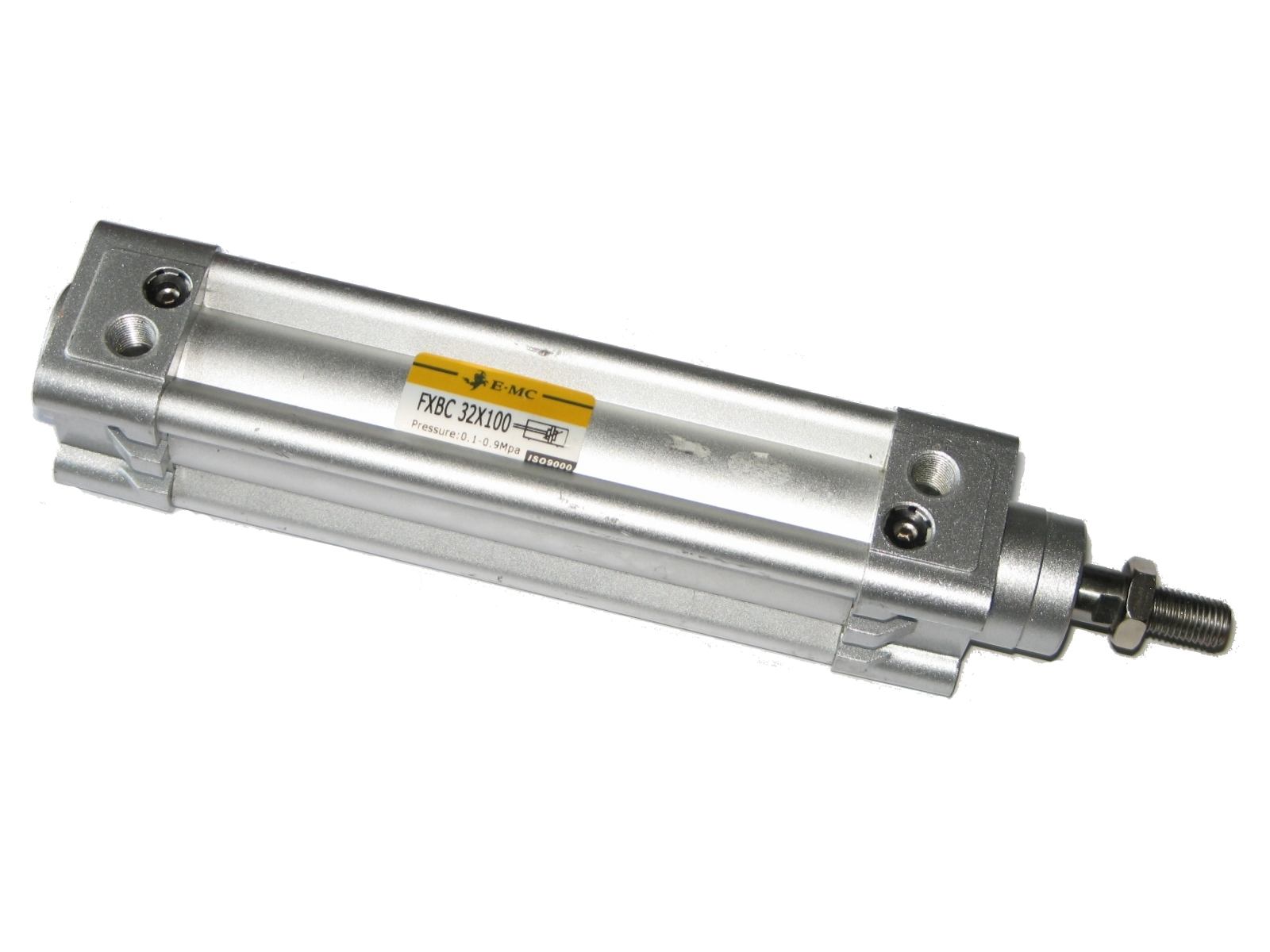

FXBC32X100	32	12	100	120	45	M10x1.25	1/8	22	32.5	M6	26	30	22	32.5	sold
FXBC32X125	32	12	125	120	45	M10x1.25	1/8	22	32.5	M6	26	30	22	32.5	sold
FXBC32X160	32	12	160	120	45	M10x1.25	1/8	22	32.5	M6	26	30	22	32.5	sold
FXBC32X200	32	12	200	120	45	M10x1.25	1/8	22	32.5	M6	26	30	22	32.5	£59.00
FXBC32X250	32	12	250	120	45	M10x1.25	1/8	22	32.5	M6	26	30	22	32.5	sold
FXBC32X300	32	12	300	120	45	M10x1.25	1/8	22	32.5	M6	26	30	22	32.5	£69.00
FXBC32X400	32	12	400	120	45	M10x1.25	1/8	22	32.5	M6	26	30	22	32.5	sold
FXBC32X500	32	12	500	120	45	M10x1.25	1/8	22	32.5	M6	26	30	22	32.5	sold

Mountings available

Name	A	B	C	D	E	F	G	H	I	J	Price

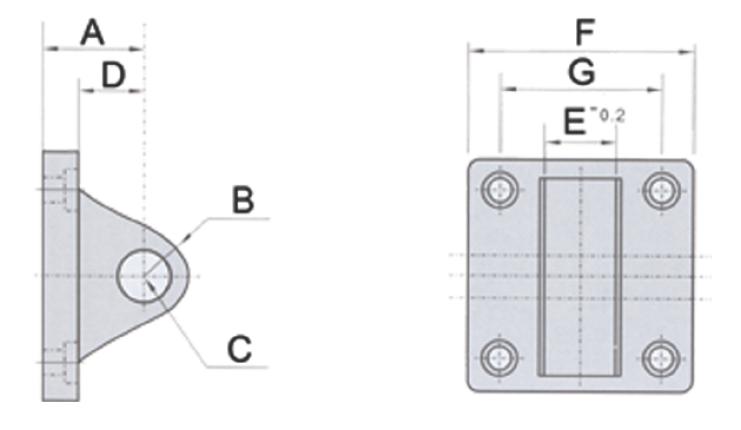

CA Mount	34	14	12	14	16	48	33	N/A	N/A	N/A	£

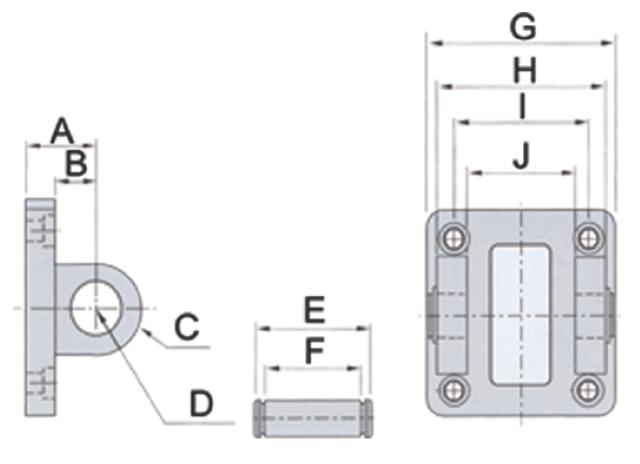

CB Mount	19	5	12	13	41	33.5	48	33	16.3	32	£
Y Clevis	26.2	20	19	10	52	40	20	10	M10x1.25	N/A	£
Spherical Bearing	14	28	10	15	20	50	66	M10x1.25	N/A	N/A	£

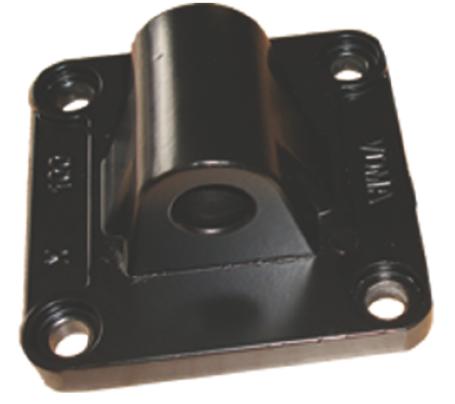

CA Mount

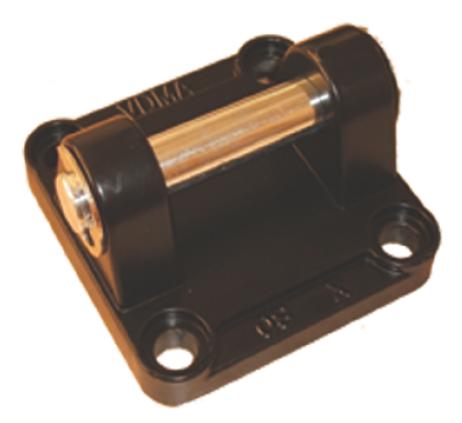

CB Mount

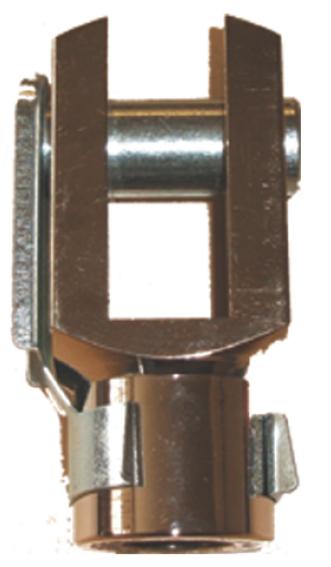

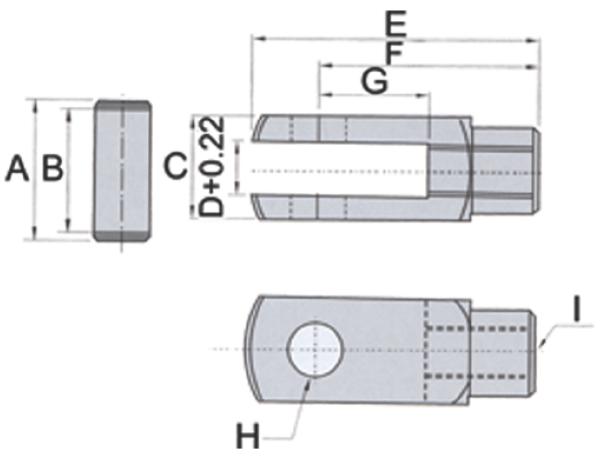

Y Clevis

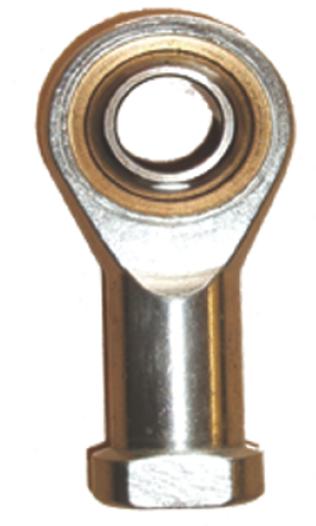

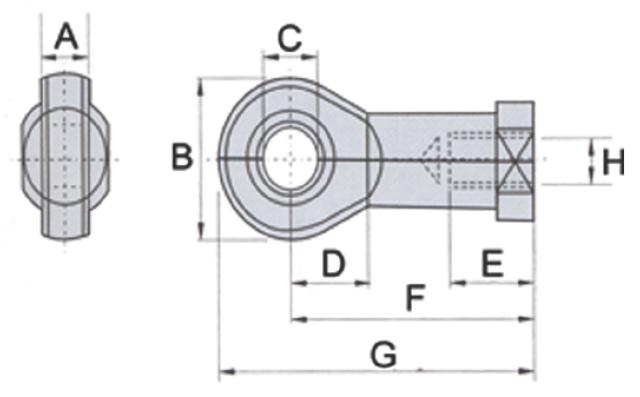

Spherical Bearing
