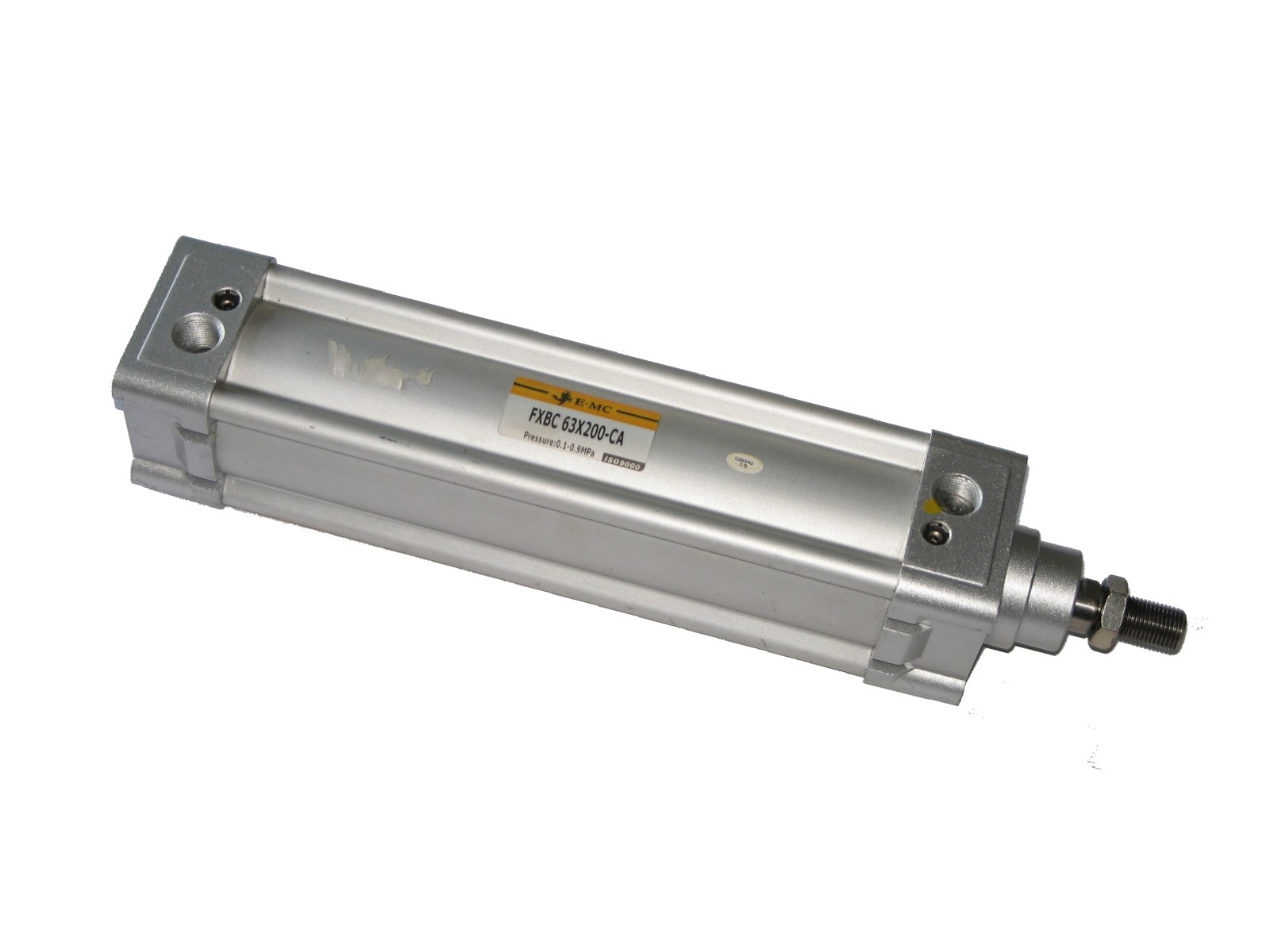

EMC VDMA Pneumatic Cylinders - 40mm Bore Cylinders

ALL OUR FXBC & FVBC CYLINDERS HAVE STAINLESS STEEL SS304 RODS

Part number	Bore	Rod	Stroke	A	B	C	D	E	F	G	H	I	J	K	Offer Price
FXBC40X25	40	16	25	135	54	M12x1.25	1/4	24	38	M6	30	35	24	38	sold
FXBC40X50	40	16	50	135	54	M12x1.25	1/4	24	38	M6	30	35	24	38	sold
FXBC40X80	40	16	80	135	54	M12x1.25	1/4	24	38	M6	30	35	24	38	sold
FXBC40X100	40	16	100	135	54	M12x1.25	1/4	24	38	M6	30	35	24	38	£59.00
FXBC40X125	40	16	125	135	54	M12x1.25	1/4	24	38	M6	30	35	24	38	sold
FXBC40X160	40	16	160	135	54	M12x1.25	1/4	24	38	M6	30	35	24	38	sold
FXBC40X200	40	16	200	135	54	M12x1.25	1/4	24	38	M6	30	35	24	38	£69.00
FXBC40X250	40	16	250	135	54	M12x1.25	1/4	24	38	M6	30	35	24	38	sold
FXBC40X300	40	16	300	135	54	M12x1.25	1/4	24	38	M6	30	35	24	38	£79.00
FXBC40X400	40	16	400	135	54	M12x1.25	1/4	24	38	M6	30	35	24	38	£89.00
FXBC40X500	40	16	500	135	54	M12x1.25	1/4	24	38	M6	30	35	24	38	£99.00

Mountings available

Name	A	B	C	D	E	F	G	H	I	J	Price
CA Mount	34	14	14	14	20	50	37	N/A	N/A	N/A	£
CB Mount	25	16	12	12	59	52.5	53	52	38	28	£
Y Clevis	32.8	26.5	25.4	12	62	48	24	12	M12x1.25	N/A	£
Spherical Bearing	16	32	12	17	22	50	66	M12x1.25	N/A	N/A	£

CA Mount
CB Mount
Y Clevis
Spherical Bearing
