EMC VDMA FXBC FVBC VBC Pneumatic Cylinders - 100mm Bore Cylindersspecemc

ALL OUR FXBC & FVBC CYLINDERS HAVE STAINLESS STEEL SS304 RODS

Part number Bore Rod Stroke A B C D E F G H I J K Price
FXBC100X25 100 25 25 189 110 M20x1.5 1/2 40 89 M10 51 55 100.4 69.8 £125.00
FXBC100X50 100 25 50 189 110 M20x1.5 1/2 40 89 M10 51 55 100.4 69.8 £127.90

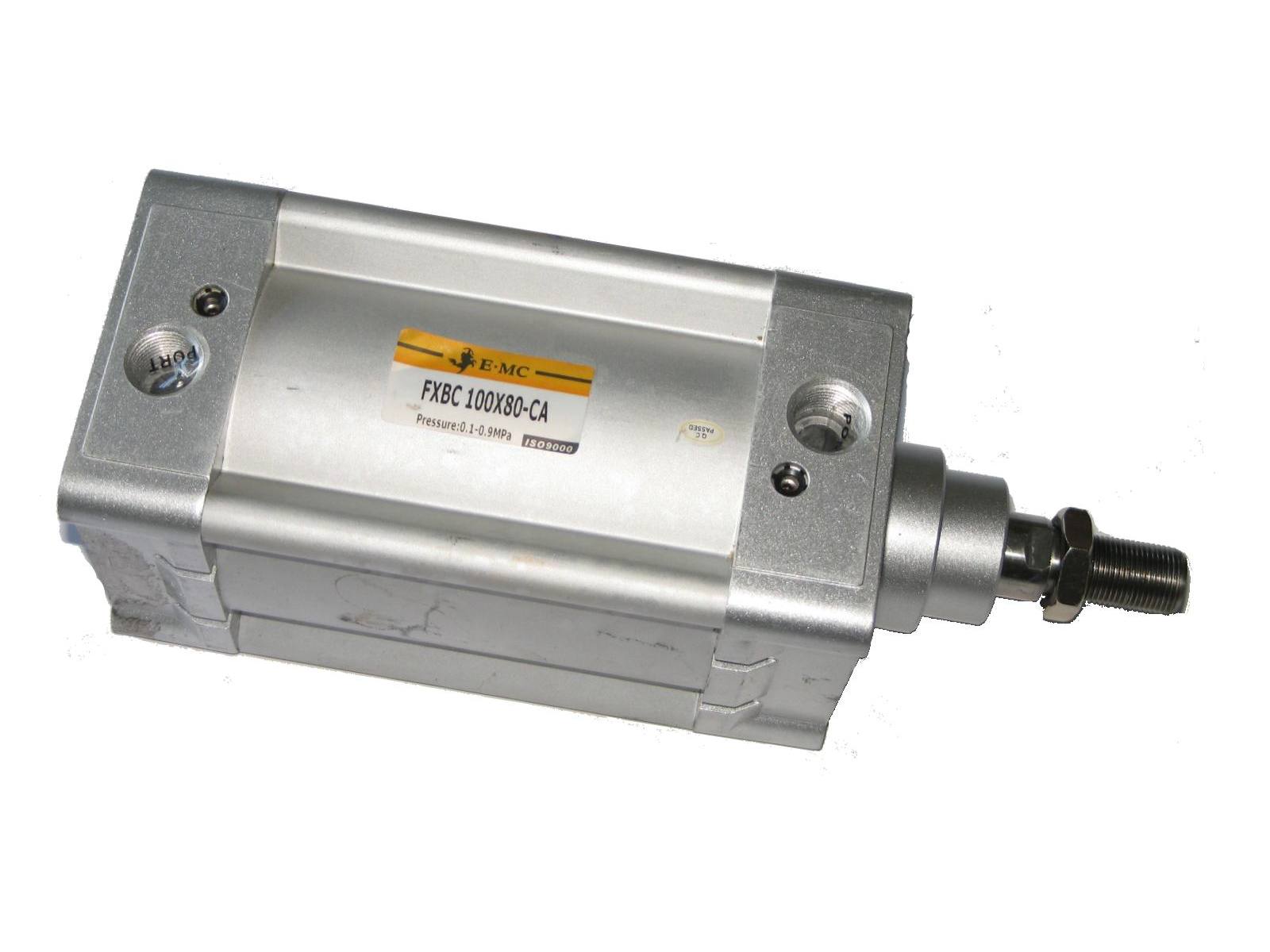

FXBC100X80 100 25 80 189 110 M20x1.5 1/2 40 89 M10 51 55 100.4 69.8 £131.20
FXBC100X100 100 25 100 189 110 M20x1.5 1/2 40 89 M10 51 55 100.4 69.8 £133.00
FXBC100X125 100 25 125 189 110 M20x1.5 1/2 40 89 M10 51 55 100.4 69.8 £136.00
FXBC100X160 100 25 160 189 110 M20x1.5 1/2 40 89 M10 51 55 100.4 69.8 £141.50
FXBC100X200 100 25 200 189 110 M20x1.5 1/2 40 89 M10 51 55 100.4 69.8 £146.90
FXBC100X250 100 25 250 189 110 M20x1.5 1/2 40 89 M10 51 55 100.4 69.8 £156.50
FXBC100X300 100 25 300 189 110 M20x1.5 1/2 40 89 M10 51 55 100.4 69.8 £166.60
FXBC100X400 100 25 400 189 110 M20x1.5 1/2 40 89 M10 51 55 100.4 69.8 £185.20
FXBC100X500 100 25 500 189 110 M20x1.5 1/2 40 89 M10 51 55 100.4 69.8 £205.00

Mountings available


Name A B C D E F G H I J Price
CA Mount 41  20 20 27 60 115 89 N/A N/A N/A £17.80
CB Mount 41 27 20 20 119 110.5 115 110 89 60 £17.80
Y Clevis 53 45 44 20 105 80 40 20 M20x1.5 N/A £14.95
Spherical Bearing 25 50 20 26 33 77 102 M20x1.5 N/A N/A £26.40
